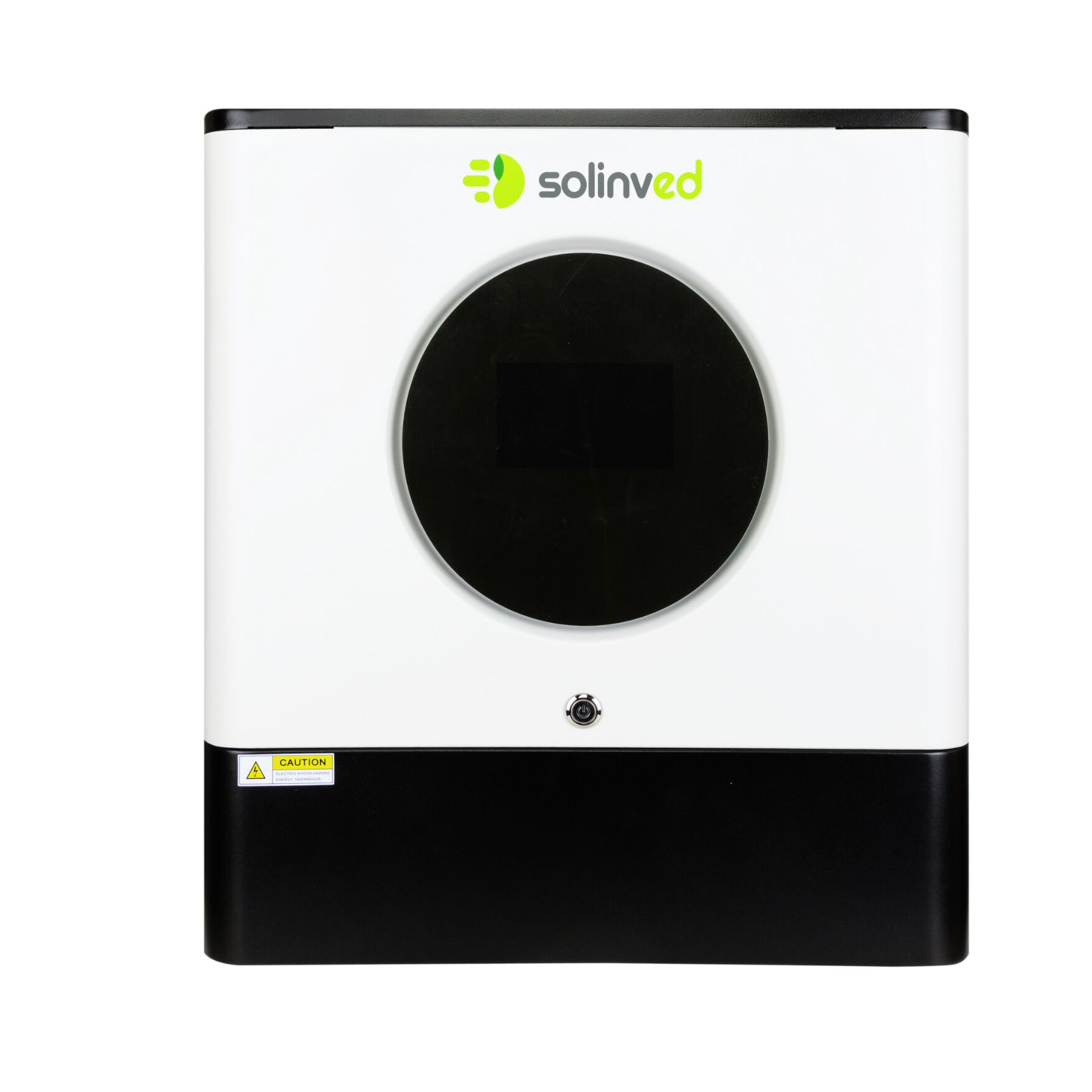

8 kW Max-II Serisi MPPT Off Grid İnvertör
Kategori
Marka
Stok Kodu
SLVP2024-00088
Garanti Süresi
24 Ay
Fiyat
93.736,50 TL + KDV
*7.018,99 ₺ 'den başlayan taksitlerle
%40 İndirimli
67.490,28 ₺
112.483,80 ₺
| MODEL | MAX II 8000 | MAX II 11000 |
|---|---|---|
| Rated Power | 8000VA / 8000W | 11000VA / 11000W |
| Parallel Capability | YES, 6 UNITS | |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170–280VAC (personal) / 90–280VAC (home) | |
| Frequency Range | 50Hz / 60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ±5% | |
| Surge Power | 16000VA | 22000VA |
| Efficiency (Peak) | 93% | |
| Transfer Time | 15ms (personal) | 20ms (home) |
| Wave Form | Pure Sine Wave | |
| No Load Power Consumption | <70W | <75W |
| BATTERY & AC CHARGER | ||
| DC Voltage | 12 VDC ±5%, 100W | |
| Battery Voltage | 48VDC | 48VDC |
| Floating Charge Voltage | 54VDC | 54VDC |
| Overcharge Protection | 66VDC | 66VDC |
| SOLAR CHARGER | ||
| MAX. PV Array Power | 8000W (4000W * 2) | 11000W (5500W * 2) |
| MPPT Range @ Operating Voltage | 90–450 VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum PV Input Current | 27A ×2 (MAX 40A) | |
| Maximum AC Charging Current | 120A | |
| Maximum Charging Current | 150A | |
| Solar Charger Type | MPPT | |
| PHYSICAL | ||
| Dimensions (D×W×H) | 158.4 × 502.5 × 530.8 mm | |
| Net Weight | 20 kg | |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-Contact | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-Condensing) | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
| STANDARD | ||
| Compliance / Safety | CE | |
